Our keyboards are rugged and fully sealed to survive in harsh environments. The use of table space is minimized as the pointing device is integrated in to the units.
| Aqeri 93105 | Aqeri 93700 | |
|---|---|---|
| View description | View description | |
| Type | Keyboard | Keyboard |
| Pointing device | Integrated touch pad | Integrated trackball 50mm (2”) |
| Interfaces | ||
| Aqeri 93105 | Aqeri 93700 | |
| PS/2 | x1 DSUB | - |
| USB interface in DB-9 connector | - | x1 DB9 DSUB Connector (keyboard & trackball) |
| Environmental Characteristics | ||
| Aqeri 93105 | Aqeri 93700 | |
| Temperature | Operating -20°C to +55°C | Operating -20°C to +60°C |
| Humdity | 5% to 95% non condensing | 5% to 95% non condensing |
| Altitude Operating | 3000m | N/A |
| Vibration | Operating 10-500Hz 2g rms | Operating 5G, 5-2KHz any plane |
| Shock | Operating 15g, 11ms, ½ sine wave | Operating 40g, 11ms, ½ sine wave |
| Designed to fulfill | European CE MIL-STD-461E MIL-STD-1275D MIL-STD-810G | European CE IP65 |
| Physical Characteristics | ||
| Aqeri 93105 | Aqeri 93700 | |
| Width | 290 mm | 440 mm |
| Height | 26 mm | 44 mm |
| Depth | 198 mm | 198 mm |
| Weight | 1,2 kg | 2,8 kg |
| MTBF | N/A | 60000 hours |
| Data Sheets | ||
| Aqeri 93105 | Aqeri 93700 | |
| Download | Download | |

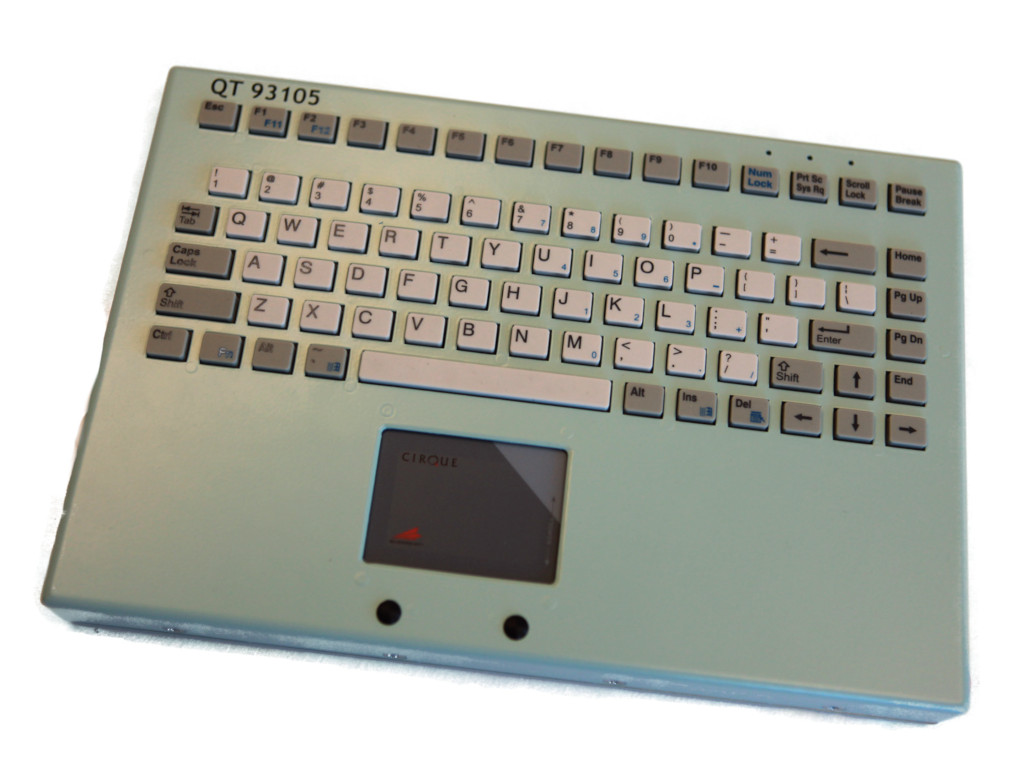

Aqeri 93105 freestanding keyboard is rugged and fully sealed to survive in harsh environments. The use of table space is minimized as the pointing device is integrated in to the unit.

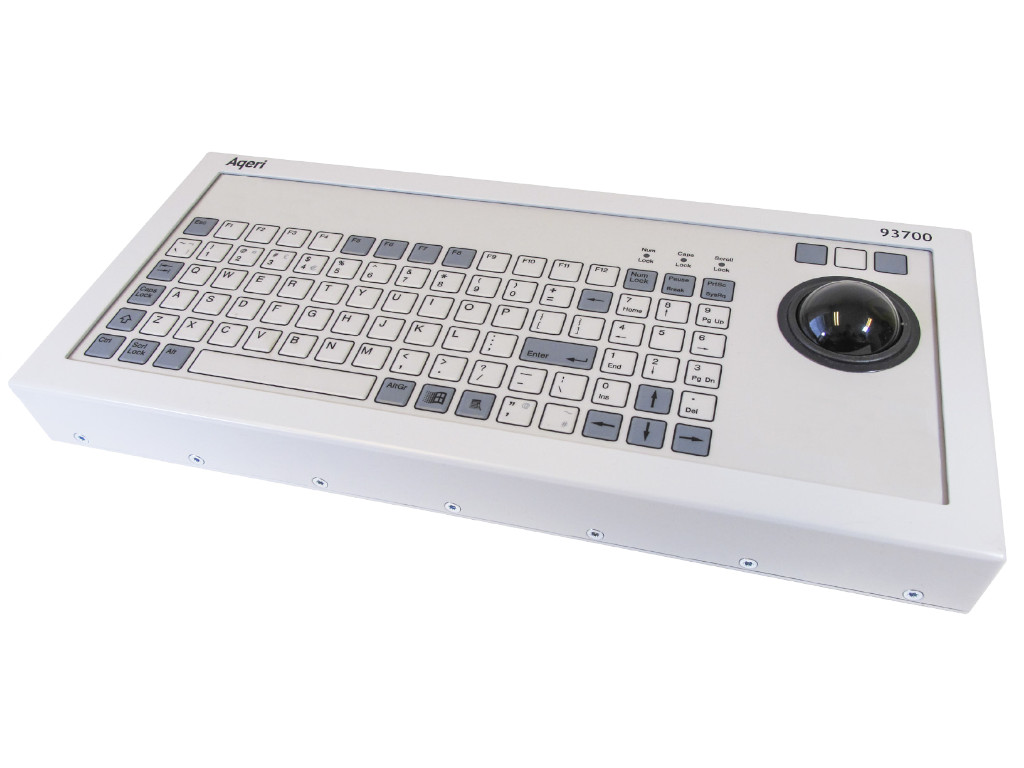

Aqeri 93700 freestanding keyboard is rugged and fully sealed to survive in harsh environments. The use of table space is minimized as the pointing device is integrated into the unit.
